CARRIER TAPE FORMING MACHINE
CARRIER TAPE
1608-0.8t
SOD-80C
SOD-523
SOT-3X3
SOT-23
SOT-25,26
SOT-523F
SOT-563F
SOT-886
TANTAL-A
TANTAL-P
TULIP-2010
TRIM/FORM/SINGULATION
SYSTEM
LCD EQUIPMENT
SPARE PARTS
¡á

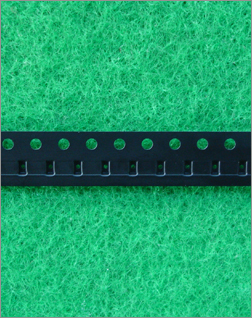

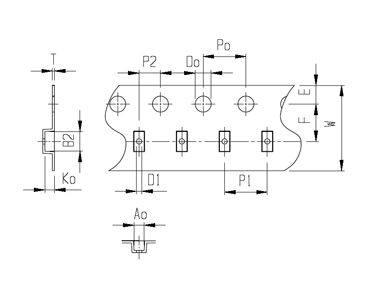

SPECIFICATIONS
ITEM
SYMBOL
SPECIFICATIONS
NOTE
DIMENSION (MM)
TOLERANCE
OVERALL DIMENSONS
TAPE WIDTH
W
8.0
¡¾0.20
SPROCKET HOLES
DIAMETER
D0
1.5
+0.10
CUM.PITCH ERROR
¡¾0.10/10PITCH
DISTANCE
E
1.75
¡¾0.10
PITCH
P0
4.0
¡¾0.10
DISTANCE BETWEEN CENTER LINES
LENGTH DIRECTION
P2
2.0
¡¾0.05
WIDTH DIRECTION
F
3.5
¡¾0.05
COMPARTMENTS
LENGTH
A0
0.95
¡¾0.05
WIDTH
B2
1.85
¡¾0.05
DEPTH
K0
0.90
¡¾0.10
HOLE DIAMETER
D1
0.5
¡¾0.05
PITCH
P1
4.0
¡¾0.10
VERTICAL ANGLE OF WALL AT CROSS SECTION VIEW
SEE DRAWING
CARRIER TAPE ANTISTATIC
FILM THICKNESS
T
0.20
¡¾0.05
CONDUCTIVE POLYCARBONATE BLACK IN COLOR 100% RECYCLABLE
BENDING RAD
BEND
DT
0.3
MAX.
IN WINDING DIRECTION
R
30
MIN.
