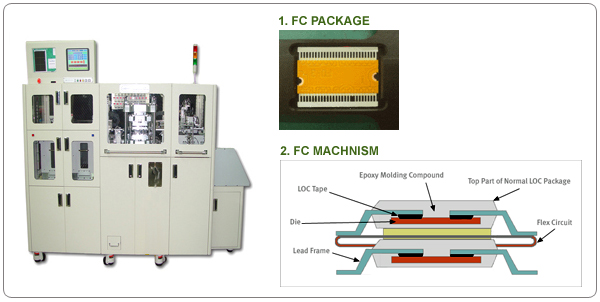

■ FEATURE 1. High Reliability - Servo mechanical press - Minimized vibration and noise - Compact and robust design 2. Loading/Unloading System - Stack magazine type - Slot magazine type - Tray / Tube type - Bulk type 3. Tooling System - Modular type of tools enabling easy and quick conversion, maintenance and parts cleaning. - Same master dies are applicable for same type of devices - Diamond coating for punch & die parts - Sensors for module type detection 4. Monitoring & Operating System - LCD Monitor/Touch Screen - Various display on monitor - User-Friendly machine control - Display for error message and troubleshooting 5. Vision System(Option) - Automatic sorting function of rejected packages - Trim/Form inspection item :   - PKG Type   - L/F Orientation   - Lead Count / Bent / Broken / Skew / Pitch / Width   - PKG Size   - Incomplete Mold   - Uncut, Dambar, Intrusion, Protrusion   - Terminal Dimension   - Stand Off, Coplanarity (Form) 6. Application Package Device - FC-54, FC-66,FC-48, etc.

■ SPECIFICATIONS
Power Supply 220/380V, 3-phase Frequency 50/60 Hz Power Consumption 3 Kw Compressed Air 80~100 psi Average Air Consumption 80 NL/Min Control Program PLC Ladder & C-Language Operating Management PLC & Touch Screen Machine Dimension 1,840(W) x 1,000(L) x 1,520(H) mm Machine Weight 1,650 Kg Capacity 100-180 Stokes/min. (UPH Depending on Configuration & Quality of Product)
